Standard single cab
THE PHOSPHOR COLLECTION01 / 09

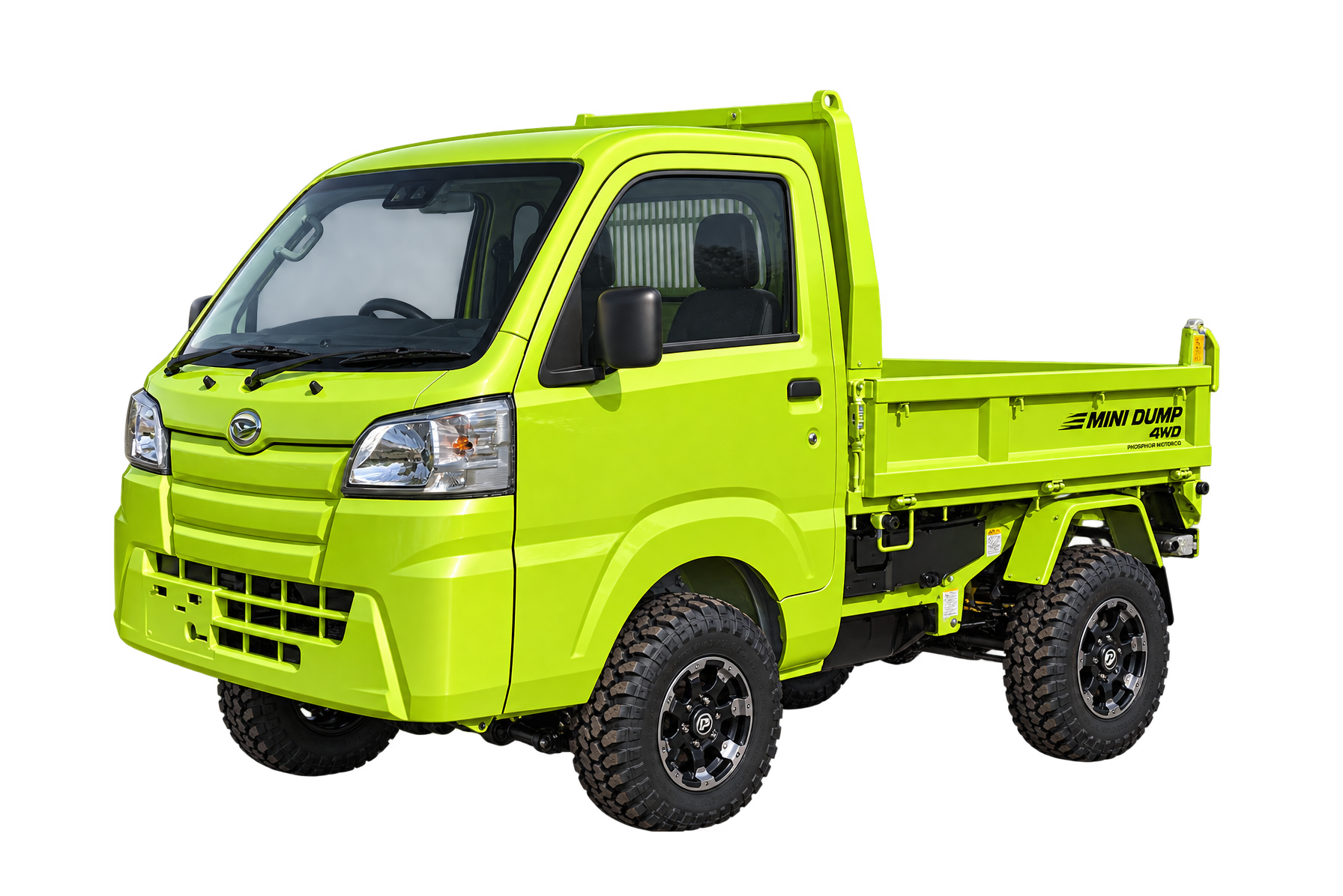

Phosphor Lime / Front three-quarter
Five finishes in the front view. Additional views show Phosphor Lime. The cabin design is shared across paint choices.
Images currently shown are generated illustrations. Request real vehicle photos and records for the truck being sourced.
Open full-resolution image ↗Hijet / Mini Dump
Small footprint. A bed that does more.
Explore the guided walkaroundPhosphor Lime
Find your truckCompare your quote
A compact single-cab dump layout for your sourcing request. A rear-hinged tipping bed, link-arm hoist and three-way opening gates give this collection its own purpose.
- Design basis
- Hijet standard single cab
- Drivetrain brief
- 4WD configuration requested
- Engine basis
- KF gasoline family. Exact year, grade and label to confirm.
- Next step
- Send a listing, a quote or your requirements
Send your requirements or an exact listing. We will compare the details with you.
Rear-tipping bed
4WD configuration requested
Exact unit to confirm
PHOSPHOR / THE CLOSER LOOKSmall truck.
Small truck.
Look a little deeper.
Explore the Mini Dump exterior, working bed and cabin. Contact us for real vehicle photos. Truck films will follow as footage is added.
Generated design imagery, not condition evidence or operating instructions. No truck video is published in this preview.
CONSIDERED DETAILSA working truck.
A working truck.
A little more considered.

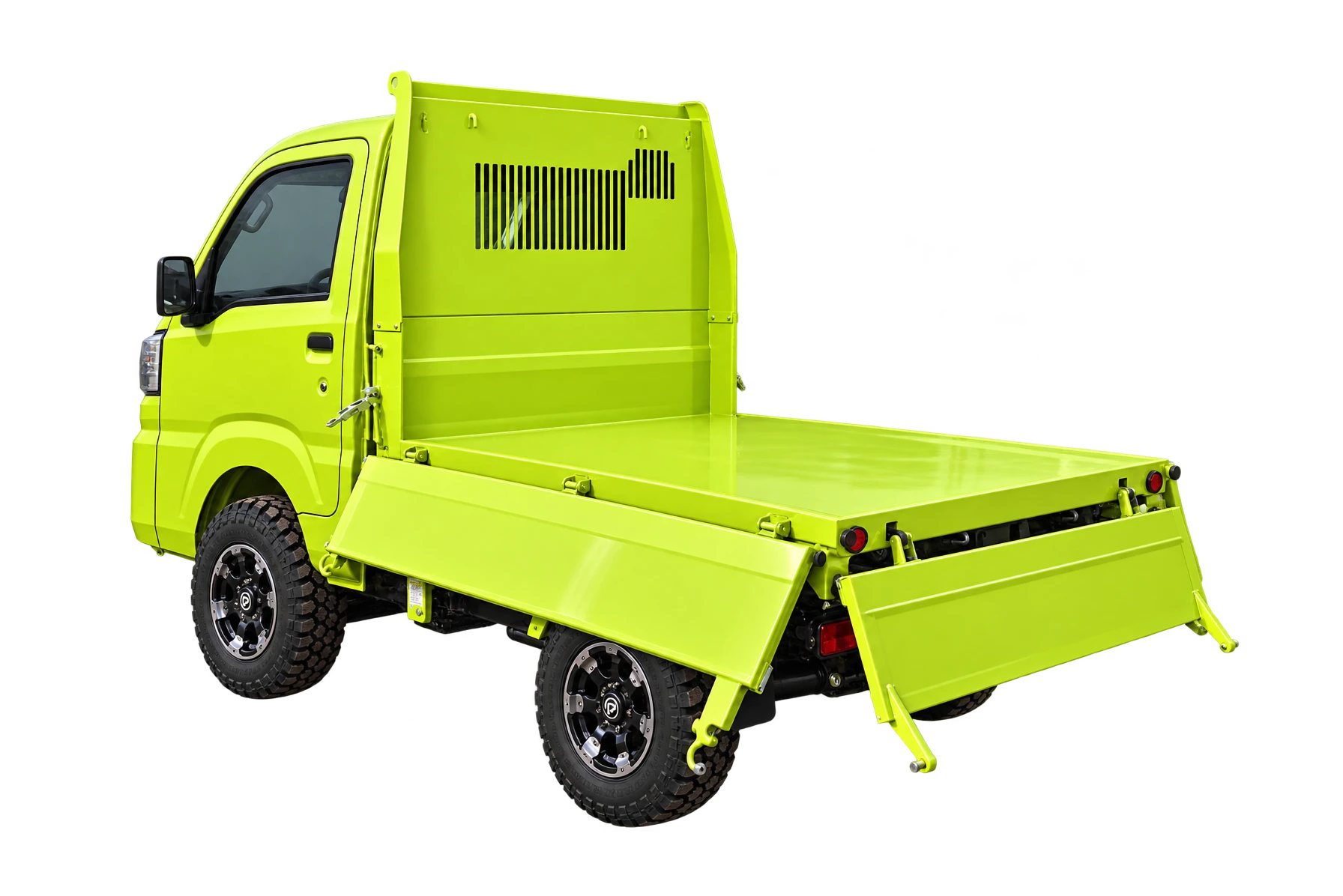

The drop-side bed, rear tipping hinge and compact single cab stay at the heart of the design. Phosphor paint and restrained Mini Dump lettering bring it into the collection without hiding the working hardware.

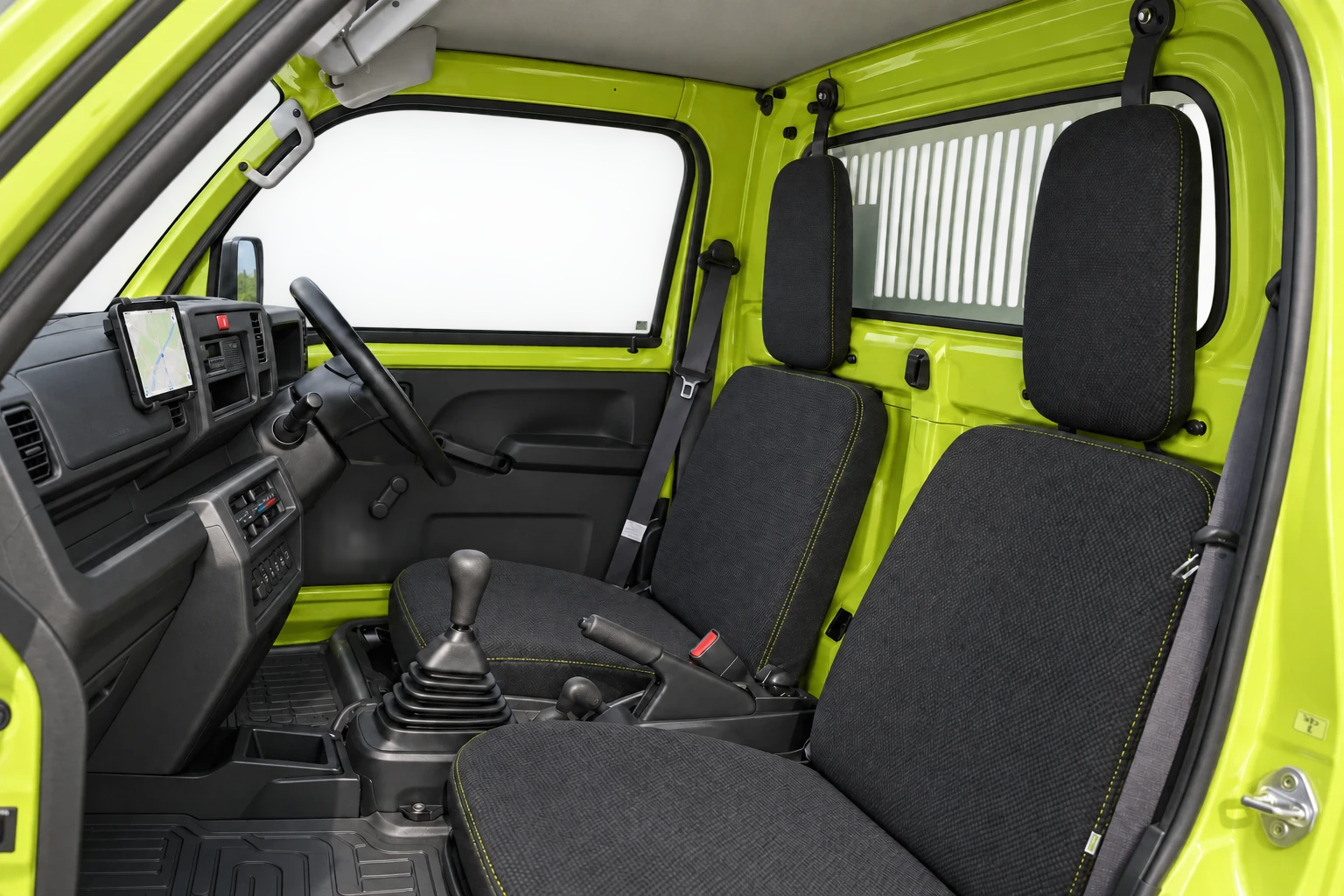

Our interior direction is obsidian charcoal, subtle lime stitching and easy-clean mats. An iPad mini and mount are planned custom additions, not Daihatsu factory equipment. Mount position, crash safety, secure retention and driver visibility require review before installation.
Actual vehicle photos and records are reviewed with the quote. Colors are screen previews, not calibrated paint formulas.
A CLOSER LOOKMade for the load.
Made for the load.
Considered for the day.
Explore the proposed hardware and cabin. Each view opens in the gallery above.
Know what fits.
The multipurpose dump has its own bed dimensions, not the regular flatbed measurements.
Reference bed length1,880 mm74.0 inchesReference inside width1,380 mm54.3 inchesReference side height320 mm12.6 inches
Original schematic, not a scale drawing or a measurement of this generated truck. Figures refer to the current multipurpose dump, not every dump-body type. Liners and accessories can reduce usable space. Confirm the actual year, grade and body before loading or ordering.
Read the manufacturer measurements ↗The numbers behind the idea.
For Daihatsu's current Japanese-market multipurpose dump. Your reference vehicle's manufacture date and exact grade remain unconfirmed. The pictured earlier front design is not a claim to depict the newest facelift.
- Factory chassis
- 3BD-S510P / standard roof / 4WD / two seats
- Gasoline engine family
- KF / 658 cc / naturally aspirated three-cylinder DOHC
- Overall reference dimensions
- 3,395 × 1,475 × 1,835 mm (length × width × height)
- Reference bed interior
- 1,880 × 1,380 × 320 mm (length × width × side height)
- Factory rated payload
- 350 kg before custom modifications. Not a payload rating for a modified vehicle.

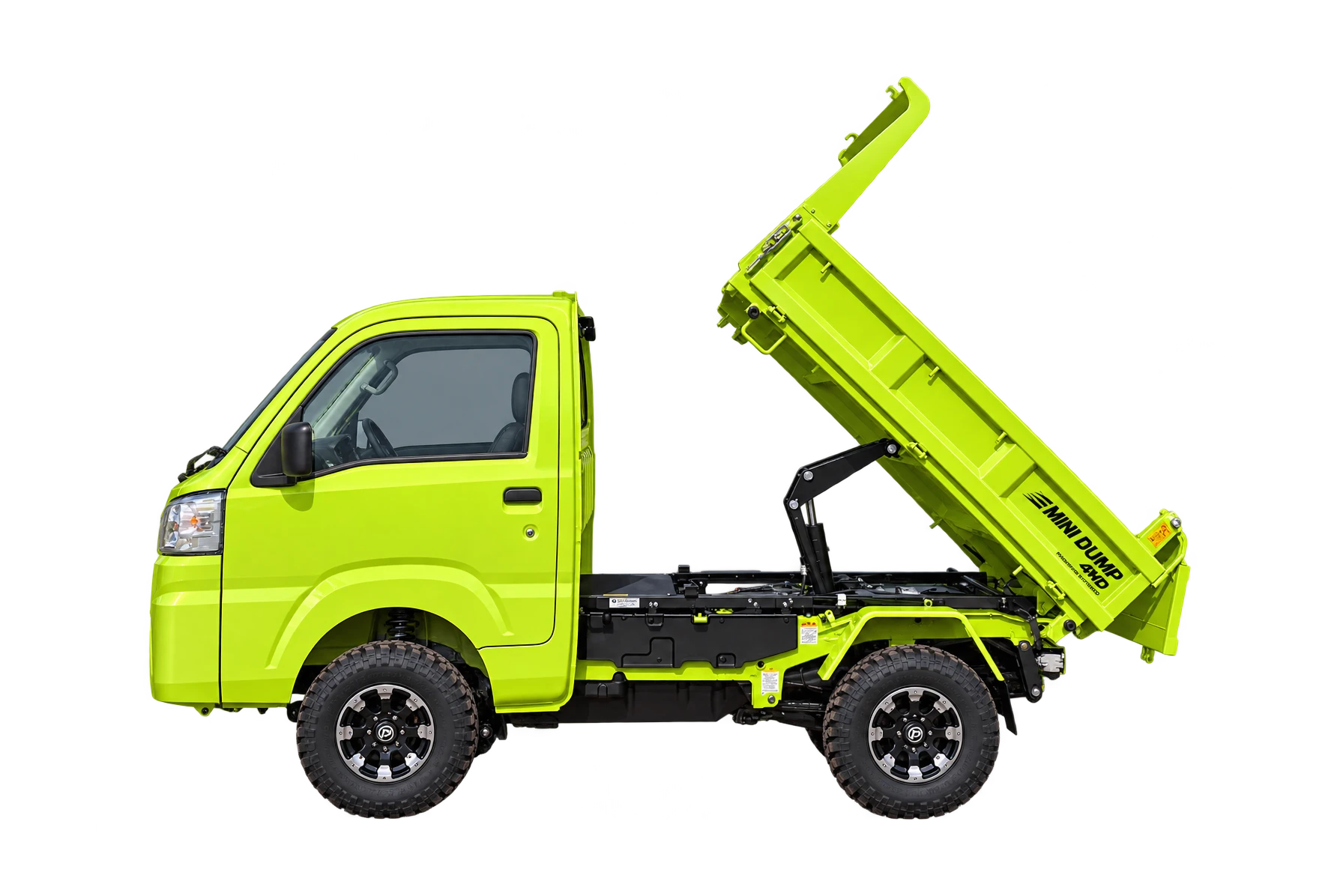

- Dump mechanism
- Link-arm hoist / approximately 50° maximum factory tipping angle
- Transmission and hoist choices
- 5MT with PTO or electric-motor dump drive. CVT with electric-motor dump drive. Exact unit to confirm.
Rendered mechanism views are not operating instructions. Follow the actual vehicle manual and required safety support procedures. Material suitability, final payload and conversion approval must be checked.
Confirm the vehicle. Then the build.
Exact manufacture date, chassis code, engine label, transmission, body maker and final equipment belong in the quote. A manufacturer engine code is not an EPA certification identifier. Emissions documentation, federal safety import requirements and state road registration are separate checks.
Daihatsu model reference ↗Compare model families ↗Documentation & eligibility ↗Factory & custom finishes ↗What to ask for in actual vehicle photos ↗
REVIEWED OCTOBER 27, 2026 / EXACT UNIT UNCONFIRMEDYOUR NEXT STEPThe right truck.
The right truck.
Then every detail.
Your finish and transmission preference travel into a guided inquiry. Review the details before downloading a draft or saving a synthetic sample locally.
Start with this build ↗Can you help me find this exact truck?
Yes. Send us the listing or photos and tell us what matters to you. We will review the vehicle details, compare the quote and request real photos and records for the specific truck. No truck is reserved by sending an inquiry.
What goes into the final price?
The selected vehicle, equipment, preparation, transport and applicable fees belong in an itemized quote. No estimate or deposit is collected by this preview.
Can it be imported and driven on the road?
Eligibility depends on the exact vehicle, its age, emissions records and applicable federal and state requirements. Approval documents are pending. No road-use eligibility is implied.
What does the brief do?
It carries your choices into a reviewable inquiry draft. Drafts stay in page memory until downloaded. Local Pulse saving accepts synthetic sample details only. Nothing is emailed and no reservation is made.
